Verkline Front lightweight tubular subframe – Toyota GR Yaris

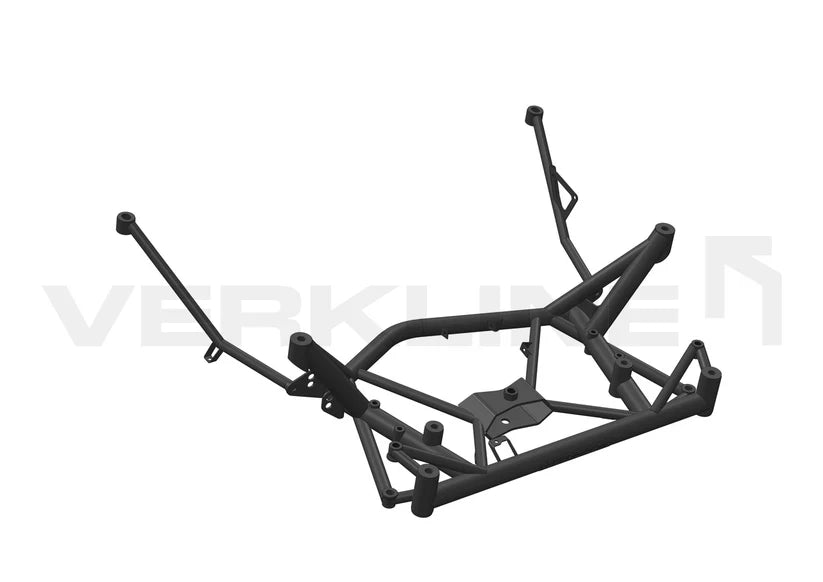

 VERKLINE new front lightweight tubular subframe for Toyota GR Yaris

Product functionalities:

• Additional suspension mounting points (wishbones, steering rack, anti-roll bar) for improved suspension kinematics for lowered cars with racing purpose.
• One mounting subframe position eliminates subframe shifting under the car. No need for subframe locking kit / deadset collar kit (weight savings).
• Increases chassis rigidity for improved handling performance. No need for additional lower bar/member brace (weight savings).
• Better access to car underbody.

Features:

• Lighter than OEM by 7 kg.
• Made from T45 super strong piping.
• Compatible with both OEM and Verkline wishbones

What is included:

• Delivered painted (powder coated) black or on special order (+50 euro) any RAL color
• Set of bushings for modifying kinematics (wishbones, steering rack, anti-roll bar)
• Set of mounting bolts.
• Custom air duct
• Printed install instructions

Used in:

– Toyota Yaris GR 2020+

Note: Installation of this rear insert kit will introduce some additional some NVH (noise, vibration, and harshness) transfer into the cabin.
